Hard Disk Magnetic Crusher, degausser, Tape Eraser

The Hard Disk Magnetic Crusher (Degausser) erases data from the hard drive through extreme magnetic power being transmitted into the unit. It erases and radicates the data within seconds, leaving the Hard Disk Drive completely clear of data and information which is non retrievable. We also have available another range of similarly unique products for security purposes. Despite the extreme magnetic power generated by the units, there is no harm caused to the user or surrounding electronic equipment. All of our degaussers are using our own patented technologies including Rebound Method and other (patent number - 4355908, 4272019, 410687, 4071096 and more).

Our degaussersa are widely used by Japanese big companies including NTT, Fujitsu, Hitachi, Softbank, Toyota, Osaka Gas, Tokyo Electric Power Company and many of government offices including polices, courts and defense agencies. Internationl firms like Intel, HP, well-known Security Firm and various embassies and government offices like US, UK, Singapore, etc. are also our customers.

Our basic degaussers had been CESG Claims Tested Mark (CCTM) Awarded
.
Latest upgraded model, HC-3800SP has been tested for its highest power of 14.000 Oe by JEMIC (Japan Electric Meters Inspection Corporation), which is government related laboratory, as you can see in the domain (go.jp), in addition to the Institute of Scientific and Industrial Research in Osaka and Toray Center (TRC) in Shiga, Japan.
A copy of the English test report can be requested to us.

Product Comparison
NEW COMBO

Model : COMBO-LV (Download Catalog (*COMBO))

Generating Magnetic Field : 11,000 Oe
Support Media: HDD, 3.5 HDD for server, magnetic tape, etc.
Erasing Time: 0.1 second
Media Slot Size:
120(W) x 70(H) x 200(D) mm
Unit Size:
380(W) x 610(H) X 680(D)mm
Weight:
106 kg
Made in Japan

World's First!

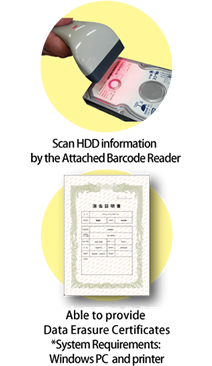

Unified Data Erasure Administration System with attached Barcode Reader

Scanned HDD information by the attached Barcode Reader and erasure logs can be transmitted over the network to a centralized location to ease administration.

The COMBO-LV is capable of performing both MAGNETIC ERASURE (Degaussing) and PHYSICAL DESTRUCTION of magnetic data on hard drives and tapes simultaneously.

The COMBO-LV has an unique four-steps process :
1-2. Erases data twice by consecutive different polarity of magnetic force exposure.
3. Destroys a target media by punching holes through it physically.
4. Finishes by applying a final magnetic filed cycle to the target media.

Even handles hard drives with high density perpendicular recording!

See Movie



Unified Data Erasure Administration
System with attached Barcode Reader
HC7800SP-L Large Hard Drive Degausser

Model: HC7800SP-L

The World First !
No need to take HDD out of your laptop PC


Product Name: HC7800SP-L Degausser
Support Media:
HDD, 3.5HDD for Servers, Tapes, Large-Size Taps, Laptops, etc.
HDD (3.5" (35mm, 41mm), 2.5", 1.8"), Tape (3480, 3490, 3590, 3592, DLT, LTO, DAT, 8mm, VHS)
Generated Magnetic Field: 9,000 Oe
Erasing Time: 0.1 second
Media Slot Size: 320(W) x 70(H) x 400(D) mm)
Dimension: 550(W) x 800(H) x 660(D) mm
Weight: 120 kg
Made in Japan

HC7800SP-L has a large slot area which is 320(W) X 70(D) x 400(D) mm. It erases hard drive data in laptop computers without taking the drive out of the computer.

HC7800SP-L equips data erasure administration system and a barcode reader. The scanned HDD information by the barcode reader and erasure logs can be transmitted over the network to a centralized location to ease administration.

See Movie



Unified Data Erasure Administration
System with attached Barcode Reader

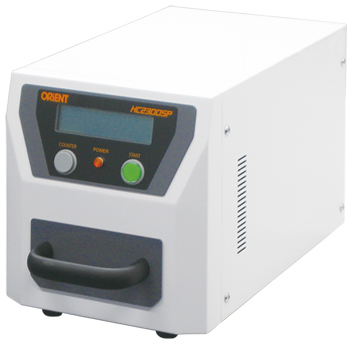

HC2300SPN/2400SP Hard Drive Degausser
Model: HC2300SPN / HC2400SP

Support Media: For High Power/High Coercivity Media such as Hard Disk, 3.5 HDD for Server etc.
HDD (3.5" (35mm, 41mm), 2.5", 1.8"), Tape (3480, 3490, 3590, 3592, DLT, LTO, DAT, 8mm, VHS)
Generated Magnetic Field:
9,000 Oe (2300SPN)
10,000 Oe (2400SP)
Erasing Time: 0.1 second
Charge Time: 18 seconds
Media Slot Size:
110(W) x 30(H) x 190(D) mm (2300SPN)
110(W) x 45(H) x 190(D) mm (2400SP)
Dimension: 236(W) x 248(H) x 480(D) mm
Weight: 19 kg
Made in Japan

HC2300SPN / HC2400SP has 9,000 / 10,000 Oersteds and can completely erase the latest, large capacity, high coercivity hard drives.
It also erases the type of tapes used for camera monitors at banks and shops. The best seller!

Even handles hard drives with high density perpendicular recording! Erasure Cycle is 18 sec!


E-SEAL
E-CASE
Model: E-SEAL
Model: E-CASE


Attach a label to an HDD before magnetically erasing (degaussing) by an Orient Computer Hard Disk Crusher. Words appear on the label to certify that the media was exposed to magnetic fields.

Before exposure
to magnetic field
Before exposure to magnetic field
exposure to magnetic field
After exposure to
magnetic field
After exposure to magnetic field
Degaussing causes words to appear on the drive's seal, as shown above.
E-CASE
When not in use, store labels in the antimagnetic file folder and keep it in a place that will not be exposed to magnetic fields.
HC3800SP Hard Drive Degausser

Model: HC3800SP-L (Download Catalog)

Support Media: For High Power/High Coercivity Media such as Hard Disk, 3.5 HDD for Server etc.
HDD (3.5" (35mm, 41mm), 2.5", 1.8"), Tape (3480, 3490, 3590, 3592, DLT, LTO, DAT, 8mm, VHS)
Generated Magnetic Field: 14,000 Oe
Erasing Time: 0.1 second
Charge Time: 18 seconds
Media Slot Size: 110(W) x 45(H) x 190(D) mm
Dimension: 236(W) x 248(H) x 480(D) mm
Weight: 22.9 kg
Made in Japan

HC3800SP-L has 14,000 Oersteds and can completely erase the latest, large capacity, high coercivity hard drives.
It also erases the type of tapes used for camera monitors at banks and shops. The best seller!

Even handles hard drives with high density perpendicular recording! Erasure Cycle is 18 sec!

HC3800SP-L equips data erasure administration system and a barcode reader. The scanned HDD information by the barcode reader and erasure logs can be transmitted over the network to a centralized location to ease administration.

See Movie



Unified Data Erasure Administration
System with attached Barcode Reader
HC3800SP Hard Drive Degausser
Model: HC3800SP (Download Catalog)

Support Media: For High Power/High Coercivity Media such as Hard Disk, 3.5 HDD for Server etc.
HDD (3.5" (35mm, 41mm), 2.5", 1.8"), Tape (3480, 3490, 3590, 3592, DLT, LTO, DAT, 8mm, VHS)
Generated Magnetic Field: 14,000 Oe
Erasing Time: 0.1 second
Charge Time: 18 seconds
Media Slot Size: 110(W) x 45(H) x 190(D) mm
Dimension: 236(W) x 248(H) x 480(D) mm
Weight: 22.9 kg
Made in Japan

HC 3800SP has 14,000 Oersteds and can completely erase the latest, large capacity, high coercivity hard drives.
It also erases the type of tapes used for camera monitors at banks and shops. The best seller!

Even handles hard drives with high density perpendicular recording! Erasure Cycle is 18 sec!

See Movie

HC7800S Large Hard Drive Degausser
Model: HC7800S

The World First !
No need to take HDD out of your laptop PC


Product Name: HC7800S Degausser
Support Media:
HDD, 3.5HDD for Servers, Tapes, Large-Size Taps, Laptops, etc.
HDD (3.5" (35mm, 41mm), 2.5", 1.8"), Tape (3480, 3490, 3590, 3592, DLT, LTO, DAT, 8mm, VHS)
Generated Magnetic Field: 9,000 Oe
Erasing Time: 0.1 second
Media Slot Size: 320(W) x 70(H) x 400(D) mm)
Dimension: 550(W) x 800(H) x 660(D) mm
Weight: 120 kg
Made in Japan

HC7800S has a large slot area which is 320(W) X 70(D) x 400(D) mm. It erases hard drive data in laptop computers without taking the drive out of the computer.

See Movie
