Hard Disk Magnetic Crusher Series  Tape Eraser
Prevent theft of hard disk data by physically puncturing HDD. Show you HDD destroyed visually.
For 2.5" HDD and 3.5" HDD. Accurate alignment of a target drive with mounting jig.
Safety design: The unit does not start an operation unless a target drive is inserted and the front door is shut.
Quick Reliable operation. Compact design.

Our HDD crushers are widely used by Japanese big companies including NTT, Fujitsu, Hitachi, Softbank, Toyota, Osaka Gas, Tokyo Electric Power Company and many of government offices including polices, courts and defense agencies. Internationl firms like Intel, HP, well-known Security Firm and various embassies and government offices like US, UK, Singapore, etc. are also our customers.

Product Comparison

BREAKS-5

Model : BREAKS-5L (Download Catalog)

Support Media:Support Media: 2.5 inch (Upto 12 mm thickness) and 3.5 inch (Upto 30 mm thickness) HDD
Erasing Time: 0.1 second
Dimension of slot area: 107(W) x 30(H) x 146(D) mm
Dimensions: 220(W) x 400(H) x 435(D) mm
Weight: 41.0kg
Made in Japan

The BREAKS-5L physical Destroyer physically breaks the hard drive ensuring the information contained on the hard drive is no longer accessible. The product meets compliance standards for mandates requiring destruction of hard drives containing private and confidential information before hard drive disposal.

The BREAKS-5L equips data erasure administration system and a barcode reader. The scanned HDD information by the barcode reader and erasure logs can be transmitted over the network to a centralized location to ease administration.

- Unified Data Erasure Administration System with attached Barcode Reader.
- Physically destroys hard drives to prevent the retrieval of information.
- Ensures correct identification of hard drives prior to disposal.
- Prevents unauthorized access of hard drive.
- Quick Quiet operation.


Unified Data Erasure Administration
System with attached Barcode Reader
NEW COMBO

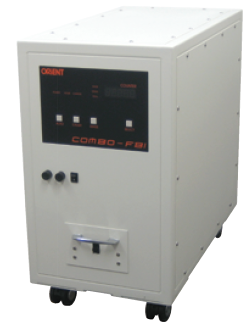

Model : COMBO-LV (Download Catalog (*COMBO))

Generating Magnetic Field : 11,000 Oe
Support Media: HDD, 3.5 HDD for server, magnetic tape, etc.
Erasing Time: 0.1 second
Media Slot Size:
120(W) x 70(H) x 200(D) mm
Unit Size:
380(W) x 610(H) X 680(D)mm
Weight:
106 kg
Made in Japan

World's First!
Unified Data Erasure Administration System with attached Barcode Reader

Scanned HDD information by the attached Barcode Reader and erasure logs can be transmitted over the network to a centralized location to ease administration.

The COMBO-LV is capable of performing both MAGNETIC ERASURE (Degaussing) and PHYSICAL DESTRUCTION of magnetic data on hard drives and tapes simultaneously.

The COMBO-LV has an unique four-steps process :
1-2. Erases data twice by consecutive different polarity of magnetic force exposure.
3. Destroys a target media by punching holes through it physically.
4. Finishes by applying a final magnetic filed cycle to the target media.

Even handles hard drives with high density perpendicular recording!

See Movie



Unified Data Erasure Administration
System with attached Barcode Reader
BREAKS-5
Model : BREAKS-5 (Download Catalog)

Support Media:Support Media: 2.5 inch (Upto 12 mm thickness) and 3.5 inch (Upto 30 mm thickness) HDD
Erasing Time: 0.1 second
Dimension of slot area: 107(W) x 30(H) x 146(D) mm
Dimensions: 220(W) x 400(H) x 435(D) mm
Weight: 41.0kg
Made in Japan

The BREAKS-5 physical Destroyer physically breaks the hard drive ensuring the information contained on the hard drive is no longer accessible. The BREAKS-5 meets compliance standards for mandates requiring destruction of hard drives containing private and confidential information before hard drive disposal.

- Physically destroys hard drives to prevent the retrieval of information.
- Ensures correct identification of hard drives prior to disposal.
- Prevents unauthorized access of hard drive.
- Quick Quiet operation.


See Movie.
